D Type Rail Clip
Rail clips, also known as elastic rail clips, railway track clips, railroad rail clips, rail e-clips, or railway sleeper clips, are used to securely fasten rails to the underlying base (such as concrete sleepers or wooden ties) in railway track systems. D Type Rail Clip is characterized by its D-shaped configuration, which provides a secure and stable connection between the rail and the sleeper or baseplate. This design helps to maintain proper rail alignment and prevent shifting.
We are a premier manufacturer of railway fasteners, specializing in the development, production, and distribution of high-quality railway components. Our range of products includes D-shaped clips, E-shaped clips, SKL clips, fast clips, and other related accessories.
Our modern facility features a fully automated production line for rail clips, providing comprehensive services such as cutting, heating, forming, and heat treatment. We are committed to ensuring exceptional product quality and excellent customer service. For any inquiries or requirements, please feel free to contact us.
D Type Rail Clip Specification
Model: D Type Rail Clip
Brand: GNEE rail
Type: Elastic Railroad Clip, Railway Fastener clip, Railway Clip
Material: 60Si2Cr, 60si2Mn,38Si7 or according to customer needs
Hardness: HRC44-48
Toe load≥10KN
Application: Rail Clip Fastening System
D Type Rail Clip Technical Parameters
| Item |
Materials |
Diameter |
Weight |
HRC |
Under pressure |
Fatigue test |
| Type III |
60Si2MnA |
ø18 |
0.80kg |
44-48 |
≥950kgf |
5000000
times
without
breaking |
| 1809 |
60Si2MnA |
ø18 |
0.63 kg |
44-48 |
≥950kgf |
| e1609 |
60Si2MnA |
ø16 |
0.43 kg |
44-48 |
≥950kgf |
| e1813 |
60Si2MnA |
ø18 |
0.60 kg |
44-48 |
≥950kgf |
| e2001 |
60Si2MnA |
ø20 |
0.80 kg |
44-48 |
≥950kgf |
| e2007 |
60Si2MnA |
ø20 |
0.80 kg |
44-48 |
≥950kgf |
| e2009 |
60Si2MnA |
ø20 |
0.80 kg |
44-48 |
≥950kgf |
| e2055 |
60Si2MnA |
ø20 |
0.80 kg |
44-48 |
≥950kgf |
| e2056 |
60Si2MnA |
ø20 |
0.80 kg |
44-48 |
≥950kgf |
| e2063 |
60Si2MnA |
ø20 |
0.80 kg |
44-48 |
≥950kgf |
| PR401 |
60Si2MnA |
ø20 |
0.97 kg |
44-48 |
≥950kgf |
| PR415 |
60Si2MnA |
ø20 |
0.95 kg |
44-48 |
≥950kgf |
| PR601A |
60Si2MnA |
ø22 |
1.23 kg |
44-48 |
≥950kgf |
Product Tags:
|
|

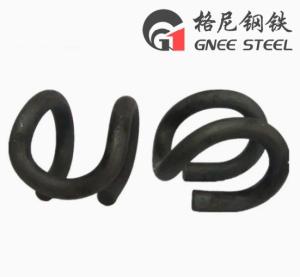

Cutting Heating Forming and Heat Treatment Services D Type Rail Clip Production Images
|
