A387 Gr.21L Cl.1 Steel Plate A387 Pressure Vessel Plates A387 Hot Rolled Steel Sheet High Pressure Vessel

Name: A387 Gr21L Cl1 Steel Plate A387 Pressure Vessel Plates A387 Hot Rolled Steel Sheet High Pressure Vessel
Brand: Gnee
Price: 680 USD

China A387 Gr.21L Cl.1 Steel Plate A387 Pressure Vessel Plates A387 Hot Rolled Steel Sheet High Pressure Vessel wholesale

Brand Name : Gnee

Model Number : According to customer requirements

Certification : SGS

Place of Origin : Tianjin, China

MOQ : 1 Ton/Tons

Price : $680 / Ton

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 800 Ton/Tons per Week

Packaging Details : Properly packed for ocean freight exportation in containers 1. Bundle 2. Water-proof Draft Paper

Standard : ASTM, bs, DIN, GB, JIS

Grade : A387

Type : Steel plate/sheet/coil, Steel Plate

Technique : Cold rolled/Hot rolled

Surface Treatment : Coated

Application : Mechanical equipment, industry, metallurgy

Special Use : carbon steel plate, High-strength steel plate

Width : According to requirements

Length : According to requirements

Tolerance : ±1%, Thickness+/-0.01mm

Product Name : standard astm a573 mild carbon steel sheet

Contact Now

A387 Gr.21L Cl.1 Steel Plate A387 Pressure Vessel Plates A387 Hot Rolled Steel Sheet High Pressure Vessel

ASTM A387 Gr 21 CL 1 is a chromium molybdenum alloy steel plate intended primarily for welded boiler and pressure vessels designed of elevated temperature service.

A387 Gr.21L CL.1Chemical Composition

Grade	The Element Max (%)
Grade	C	Si	Mn	P	S	Cr	Mo
A387 Gr.21L Cl.1	0.12	0.50	0.25-0.66	0.035	0.035	2.63-3.37	0.85-1.15

A387 Gr.21L CL.1Mechanical Property

Grade	Thickness	Yield	Tensile	Elongation
A387 Gr.21L Cl.1	mm	Min Mpa	Mpa	Min %
	t≦50	205	415-585	18
	50<t≦200	-	-	-

tem Type	Steel Grade	Specification(mm)			Mill
Thk.(mm)	Steel Grade	Width(mm)	Length(mm)		Mill
Pressure Vessel Plate	09MnNiDR/15CrMoR	6. 8,10,12,14,16,18,20	1800-2465	5100-12400	WuYang Steel /WuHan Steel /Anyang Steel/Xinyu Steel & etc.
Normalizing+ Tempering+ flaw detection	09MnNiDR/15CrMoR	22,24,25,26,28,30	1800-2650	5100-12450
	09MnNiDR/15CrMoR	32,34,35,36,38,39,40	1800-2465	5100-12400
	09MnNiDR/15CrMoR	42,44,46,48,50,52	1800-2465	5100-12400
	09MnNiDR/15CrMoR	54,55,56,58,60	1800-2465	5100-12400
	Q245R/Q345R/16MnDR	8,10,12,14,16,18,20	1800-2750	5100-13500
	Q245R/Q345R/16MnDR	22,24-50,52,54,55	1800-2650	5100-12400	ShouGang Steel/Xinyu Steel /TISCO
	Q245R/Q345R/16MnDR	56-120	1800-2400	5100-12000	XISCO,ETC.
	14Cr1MoR/12MnNiVR/12Cr1MoVR	8-110	1800-3020	5100-12400	WuYang Steel /WuHan Steel
	12Cr2Mo1R/13MnNiMo54	12-100	1800-2750	6000-12000	WuYang Steel /WuHan Steel
	16Mng/19Mn6	12-98	2000-2900↑	8000↑	WuYang Steel /WuHan Steel
	13MnNiMoNbR/13MnNiMoR	22-65	2000-2300	7000-11500	WuYang Steel /WuHan Steel
	(S)A515Gr60/70	6-120	2000-3500↑	8000-13000↑	WuYang Steel /WuHan Steel
	(S)A516Gr60/70/80	6-100	2000-3000↑	8000↑	WuYang Steel /WuHan Steel
	(S)A387M(Gr.11,12,22)	6-100	2000-3000↑	8000↑	WuYang Steel /WuHan Steel
	Q370R	12-80	2000↑	8500↑	WuYang Steel /WuHan Steel
	AISI4140/SA285GrC/SB410	12-120	1800-2750	6000-12000	WuYang Steel /WuHan Steel
	KP42/SPV355/P235GH	12-100	1800-2750	6000-12000	WuYang Steel /WuHan Steel
	HII/P265GH/P295GH/P355GH	12-100	1800-2750	6000-12000	WuYang Steel /WuHan Steel
	P355NH/P460NH/P355NL	12-100	1800-2750	6000-12000	WuYang Steel /WuHan Steel
	15Mo3/16Mo3/SA662GrC	12-100	1800-2750	6000-12000	WuYang Steel /WuHan Steel
	A537CL/A48CPR/SA612M	12-100	1800-2750	6000-12000	WuYang Steel /WuHan Steel
	18MnMoNbR/15MnNiDR/SB450	12-90	1800-2750	6000-12000	WuYang Steel /WuHan Steel
	07MnNiMoVDR/12MnNiVR	12-60	1800-2750	6000-12000	WuYang Steel /WuHan Steel
	07MnCrMoVR/WDB620/Q500FC	12-60	1800-2750	6000-12000	WuYang Steel /WuHan Steel

A387 Gr.21L Cl.1 Steel Plate A387 Pressure Vessel Plates A387 Hot Rolled Steel Sheet High Pressure Vessel

Thank you very much for viewing this page about A387 gr11/12 CL1/2 steel covers chromium-molybdenum alloy steel plates for welded boilers , and wish you a nice day!

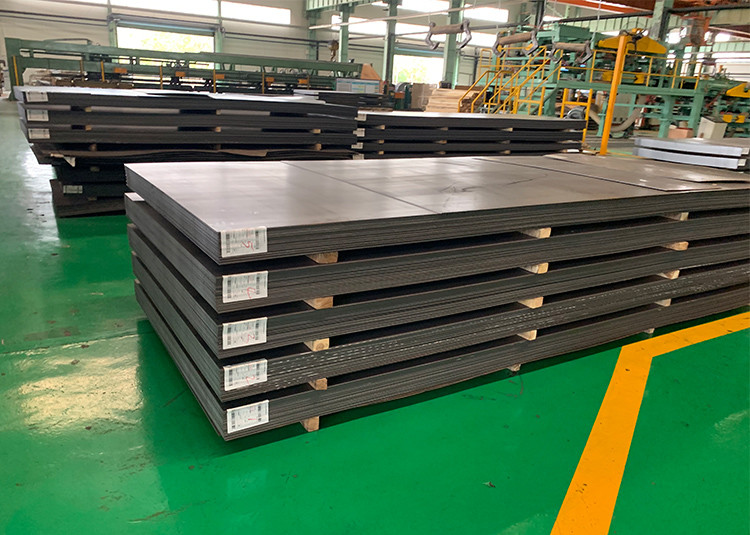

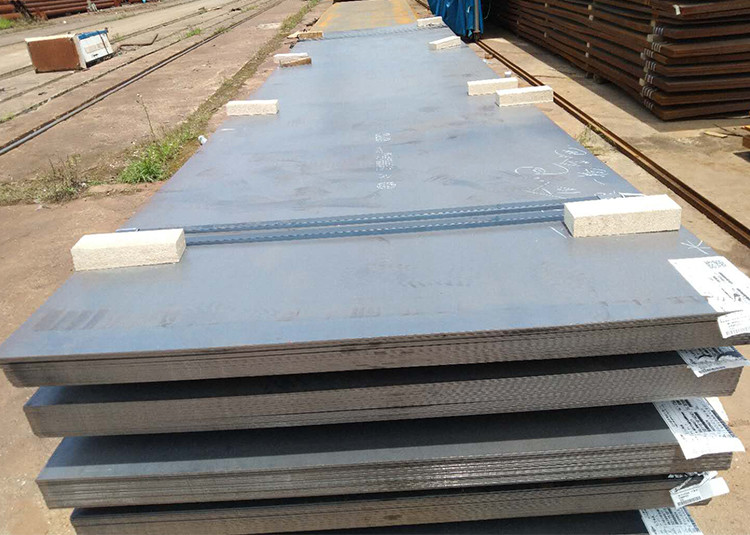

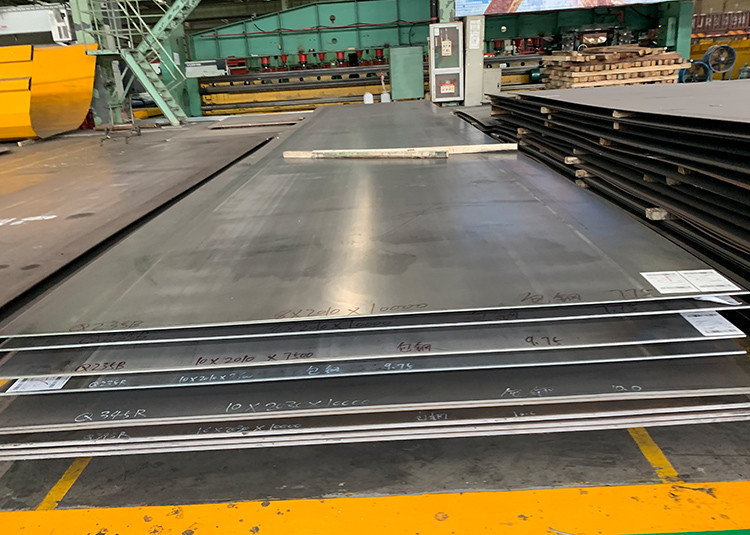

A387 Gr.21L Cl.1 Steel Plate A387 Pressure Vessel Plates A387 Hot Rolled Steel Sheet High Pressure Vessel Images
